What does the charging relay look like on a VAZ 2107

Not every driver knows what a VAZ 2107 charging relay is; in addition, this device is extremely rarely remembered. The charging relay is a voltage regulator or “chocolate bar” that is located in the generator. Owners of the Seven only pay attention to this detail after problems with the battery not charging begin. To prevent it from happening at one point, which negatively affects the engine, it is necessary to periodically monitor the operation of the charging relay.

Purpose of the regulator relay VAZ 2107 injector and carburetor

The main purpose of the voltage regulator relay on the VAZ 2107, and any other car, is to maintain a stable and sufficient charging current for the on-board network and the car battery, as well as to level out voltage surges in the generator. Variations in the generated voltage would occur as the generator rotates at different frequencies. When the power drops below 12V, the battery stops charging, and the entire bot network no longer functions at 100%. If the voltage exceeds 16 Volts, this can lead to boiling of the battery, as well as failure of on-board devices.

On early production VAZ cars of the carburetor type, the voltage regulator is located on the left arch of the engine compartment. Such devices are also called external, since they were installed outside the generator structure. To be more precise, a brush mechanism was installed in the generator, and control was carried out via a printed circuit board, which was installed outside the product.

Most VAZ 2107 cars of the carburetor and injection type are equipped with generators with built-in charging relays. The charging relay on such VAZ 2107 vehicles is located directly on the side of the generator opposite the pulley.

To maintain an acceptable battery charge, the alternator requires 13.6 to 14.6 volts of power. The voltage regulation circuit is carried out using an electrical circuit, which is located on a printed circuit board (chocolate board) or in the form of a single semiconductor module (tablet) with brushes. The switch located inside the generator is usually not able to adequately respond to the ambient temperature due to its location close to the running engine. The built-in relay is sometimes replaced with a three-level voltage regulator, which is due to the greater efficiency of the product due to manual adjustment of the output voltage.

How to check the charging relay on a VAZ 2107

If you suspect a faulty operation of the voltage regulator relay, then you must first check the voltage at the battery terminals with the car running. The power supply must be no lower than 13 and no higher than 14.6 Volts. The reasons for such increased or decreased voltage can be caused by the following factors:

charging regulator malfunction;
failure of the generator itself;
lack of contact in the electrical connections of the battery or generator.

To check the serviceability of the chocolate bar, it is necessary to remove it from the generator. This must be done by unscrewing two bolts.

It is important to know! Before you begin to remove the device, do not forget to remove the negative terminal from the battery.

To check the serviceability of the product, you need to connect a voltmeter or test lamp, as well as an adjustable power source of 12-22 Volts. You can use a power supply with a variable resistor. The control check of the regulator relay is carried out by connecting the minus wire from the regulated source to ground or terminal “Ш”. The positive wire of the power supply must be connected to terminal “B”. A voltmeter or lamp is connected to the brushes or relay output. If the product is in good working order, then when a voltage of 12 to 14 Volts is applied to it, the light will light up or the voltmeter will show similar values. If you apply power above 16 Volts, the light should go out. If the light bulb is constantly glowing, you can judge that the product is broken. The absence of a light bulb indicates a break in the relay. In both cases, the regulator cannot be repaired, so it needs to be replaced.

How can you check the product for serviceability without removing it from the car? To do this, you need to connect a voltmeter to the battery terminals, and then start the engine. If the voltmeter readings are below 12.7V or above 14.6V, then the probability of the chocolate bar failing is 95%. Replace the product with a new one, then check the voltage.

It is important to pay attention to the brushes of the product, which should protrude from the brush assembly at a distance of no less than 5 mm. If the brushes are worn out, the brush assembly must be replaced.

Product replacement

Replacing the voltage regulator on a VAZ 2107 is very simple. To do this, you need to unscrew two bolts using a screwdriver or a wrench, which depends on the generator model, then disconnect the terminal, and then remove the part itself, which looks like the one shown in the photo below.

Voltage regulator VAZ 2107 - purpose and first signs of malfunction

The voltage regulator is designed to automatically maintain a current strength of such a magnitude that the voltage generated by the generator is within specified limits, regardless of the rotation speed of the generator shaft (from engine speed) and the current consumption of the car's electrical network.

In VAZ 2107 cars, as a rule, an electronic voltage regulator is installed on the generator.

It is extremely rare that some models may come across an old-style device - a relay regulator. They were installed on generators 37.3701, produced before 1996, and on G-222. First, the device is tested on a running car. To do this, you need a voltmeter with the ability to measure DC voltage. The device must be equipped with a scale for values up to 15–30 V and have an accuracy class of at least 1.0. After starting the VAZ 2107 engine, it is allowed to run with the headlights on for 15 minutes at medium speed.

Then the voltage at the generator output is measured. To do this, the positive probe of the device touches terminal “30” on the generator, and the negative probe touches the ground (generator or car - it doesn’t matter, it’s the same thing). The voltmeter should show a voltage in the range of 13.6–14.6 V. If the measurement result is higher or lower than specified, and the vehicle is experiencing systematic overcharging or overcharging, then most likely the regulator is faulty and needs to be replaced.

Basic faults

The main reason for the breakdown of generator brushes is their wear, which makes itself felt by a poor battery charge. Replacing the gear shift lever of a VAZ 2107 - sent to a classic engine and transmission gentlemen, tell me what to do? The gear shift lever on a VAZ 2107 (5-speed) broke off. Replacing the generator brushes of a VAZ 2108 on your own. You can detect a failed part by the following problems:

voltage failures;
the battery discharges quickly or does not charge at all;
the headlights begin to burn much weaker or blink;
instrument lights blink;
There is not enough voltage for the electronics to operate and it turns off (radio tape recorder, for example).

Reasons for lack of charging and their diagnosis

Six generator brushes

Wear of generator brushes. If the brushes of the VAZ 2106 generator are not long enough, charging becomes low and may disappear completely. Checking the technical condition of spare parts should begin with a thorough inspection of the generator brush. The length of the brushes cannot be less than 12 mm. If it is smaller, the part needs to be replaced.

Failure of the diode generator bridge. The burnout of several diodes of the rectifier unit causes poor battery charging. It is imperative to diagnose the bridge.

Integrity of electrical fuses. It happens that the fusible screws are intact. In this case, you need to check their vertices. The strips on them that break the charge contact are inspected.

Alternator belt integrity and tension.

Worn inner part of the pulley. The generator belt has the shape of a wedge, as a result of which it is bursting between the cheeks of the pulley. If the pulley becomes unusable, the alternator belt begins to slip, as a result of which charging may completely disappear. The pulley needs to be urgently replaced along with the alternator belt.

Oxidized battery terminals slow down the charging flow of the vehicle's generator set. You can clean the terminals yourself with soda dissolved in water, which removes plaque. The terminals should be cleaned completely, wiped with a dry cloth and lubricated with automotive lubricant, for example, Litol.

If charging fails, be sure to check the terminal connections on the generator for oxidation or disconnection of the contact. At the generator, inspect the contacts with the ground of the car - this is a snake-shaped wire.

Why change brushes?

If signs of brush breakage are detected, they should be replaced. VAZ 2104 - 2107; replacing generator brushes on VAZ-2113, 2114, 2115. Without removing the generator. Repair of generator brushes on VAZ 2105-2107 models. Replacing the windshield of a VAZ 2107 with your own hands | auto-gid. If repairs are not carried out in a timely manner, there is a possibility that you will soon need to purchase a new generator, and this is a completely different expense. Replacing the brushes of the VAZ 2107 generator. Photo, instructions on how to do it. The battery can only hold the ignition without brushes for a few minutes, which means it will have to be constantly charged. Replacement of slip rings and bearings of the VAZ 2110 generator. And soon they will be replaced.

You can check the condition of the brushes by the size of their protrusion from the seat. Replacing the brushes of a VAZ 2107 generator is a simple procedure and usually takes a few minutes; replacing the brushes does not require removing the generator, just turn it off. If the protrusion size does not reach five millimeters , then they should be replaced immediately to avoid possible problems.

It is recommended to replace it every 50,000 km or every season, which is the key to safe operation of the vehicle. Replacing generator brushes in a Chevrolet Aveo. It is better to have a spare set of spare parts so as not to get into an unpleasant situation on the road and then call a tow truck.

Replacement Tablet Generator VAZ 2107

Replacing a brush make yourself a VAZ 2107 generator

VAZ replacement nozzles and tips 2107

Welcome friends to the car repair site. Despite the huge number of foreign cars, cars of the VAZ family are still needed and are found among motorists who are knowledgeable about technology and appreciate the advantages of the Russian automobile industry.

Of course, operation and repair are indivisible concepts, and in the event of a failure of a particular unit, fault identification and troubleshooting can be carried out completely independently. Let's look at a simple example of repairing a VAZ 2107 car generator.

Malfunctions and principle of operation of generator brushes

The electrical system of your steel stallion shows defects, when generator , a reddish warning light with a battery symbol lights up on the dashboard.

Quite often, wearing or freezing brushes is a must. Those who are familiar with the mechanism of operation of the generator understand that an excitation voltage is supplied to the armature through the brush, which not only drives the electronic machine (generator), but also regulates its output power.

In particular, the regulation itself is determined by a special device, a relay controller, which can be implemented specifically on the brush holders or installed separately (on earlier models).

READ How to Rewind the Mileage of a VAZ 2110

As a rule, this malfunction manifests itself gradually, initially accompanied by minor interruptions in the operation of the generator, which leads to its uniform failure, but other options are also possible, such as an unexpected malfunction.

How to remove the brushes from the generator and check the VAZ 2107 VAZ 2106 Mutual subscription to your channel

How to remove the brushes and check the VAZ 2107 generator

VAZ 2106.

VAZ 2107 brush replacement (WITHOUT REPLACEMENT)

VAZ 2107

, No downtime. parking while shifting gears.

Replace the VAZ 2107 generator brushes yourself

The brush repair itself usually comes down to replacing them, but first you need to remove the brush assembly from the generator body and assess the degree of wear, check for chips and cracks.

replacing generator brushes The VAZ 2107 procedure is simple and usually takes a few minutes, you do not need to remove the generator to replace the brushes, just disconnect the power cable, unscrew the two screws that secure the brush holder housing and carefully remove this assembly, make sure to disconnect the negative terminal in advance .

Warning! The battery(s) must be disconnected when performing any electrical work on the vehicle!

READ Replacement Pump On Kalina 8 Valves

Check the disassembled assembly for freezing, jamming of the brushes and their protruding part, which should be at least 12 millimeters. In case of non-compliance, the part must be replaced. Brushes for the VAZ 2107 generator can be bought at almost any auto parts store.

After fixing the problem or purchasing a new one (it's better to buy small parts with a sample of the old ones so you don't have to change them), install them in reverse order.

Prank tips

If you noticed noise from your car's alternator brush before repairs, this may mean that the bearings of the VAZ 2107 alternator may be worn out, in which case it is necessary to remove and disassemble the VAZ 2107 alternator.

A worn bearing has an increased clearance of the rolling elements and is susceptible to it; this is the case when replacing it with a new one. Keep in mind that premature bearing failure is not only due to lack of lubrication.

This is often caused by excessive tension on the alternator drive belt; in addition, a tight belt can damage the cooling system pump bearing.

Therefore, check this device regularly in accordance with the manufacturer's recommendations. It is better to habitually and regularly inspect the engine compartment while the engine is running; this will allow you to identify and eliminate previously encountered problems at minimal cost.

READ Replacing the Head Unit for a Mazda 6 2003

Correct diagnosis will help you avoid unnecessary work and unexpected breakdowns.

Without removing the generator

If you are sure that the problem with the car breakdown is a malfunction of the generator brushes , then you can do without removing it.

Turn off the negative terminal.
Disconnect the wires.
On the brush holder body, unscrew the two bolts holding it in place.
We extract the structure.
We check for damage and the size of the protruding part of the brushes (it must be at least 5mm).
We install new elements and carry out installation in the reverse order.

With the generator removed

Poor charging of the car can be caused not only by the brushes, but also by the alternator belt. To eliminate this point, when replacing brushes

it should be removed to check the condition of the belt.

Replacement result

After replacement, errors may appear about a low battery charge or a malfunction of the generator; there is no need to immediately try to find the cause of the failure. This phenomenon is not uncommon, since new brushes have just begun to break in. What are the causes of Chevrolet Niva generator breakdowns? Chevrolet Niva replacement brushes are soldered to. After some time, everything will return to normal, and you can safely continue to operate the car.

Replacing the VAZ-2107 generator brushes is perfect as a training demonstration for those who do not yet consider themselves specialists, but are just learning the basics of car repair and maintenance. This information can be used not only to repair the “Seven”, but also for other models (VAZ-2110 and 2114). Now let's proceed to a more detailed study of the issue.

Generator brushes - why are they needed?

Quite often (especially in older models) there are cases when, with a sharp increase in driving speed, various seemingly inexplicable things happen: the light of the dashboard or headlights dims, the cigarette lighter and (or) radio work intermittently. Drivers who have not been hardened by many years of experience in the cold lake may mistakenly think about burnt fuses, wiring, or shorted devices. It can take a whole day or more to work through all these versions. But what will be the driver’s surprise when the true cause of the malfunction becomes clear, that the whole essence of the problem is due to some small pieces of black metal called generator brushes.

Generator device

Based on 9th or 8th grade physics lessons, everyone knows that any generator must include two main parts, one of which is movable (rotor), and the second, correspondingly, stationary (stator). Each part has a copper (in most cases) winding. Under the influence of magnetic force, the rotor begins to rotate, powered by electricity through the armature and two other metal parts. And they are called generator brushes. Due to the constant impact of friction, all parts gradually wear out due to the constant rotation of the rotor. This happens in any case, regardless of the quality of the material of the parts (and it is really strong).

Where is the Charging Relay for VAZ 2107 Injector

where is the relay exercise on the VAZ-2107

As a rule, engine starting problems are observed in winter if the VAZ-2107 is left outdoors overnight. This can happen for a variety of reasons, however, when the battery light flashes on the device panel, you should first suspect a problem with the charge relay . In most cases, such drivers encounter drivers who often poorly maintain their vehicle.

How to change the charging relay on a VAZ-2107, also where it is

? This article is responsible for this decision.

How does a baton work?

This device is on a VAZ-2107

(both carburetor and
injector
) are located in the same housing as the brush mechanism.

Its main purpose is to stabilize the voltage at the generator output. More recently, relays designed as electrical circuit boards have been sold in stores. There was one drawback - a relatively short life expectancy. Such devices cannot be disassembled and simply replaced with serviceable ones if they break down.

Modern equivalents are slightly smaller and use a semiconductor. Old relay type not found. The new version is not inferior to it functionally and is also capable of tightly regulating the voltage in the range from 13.4 V to 14.8. Exceeding the last value when measured by a battery tester clearly indicates a relay .

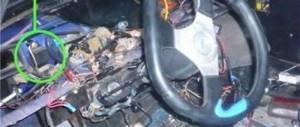

Where is the VAZ 2107 carburetor starter relay located?

When to change the relay

In the following situations:

when the brushes wear out;
if there is a fault in the circuit;
housing destroyed;
fasteners are worn out.

VAZ 2107 Charging completed. Dangerous hacks.

VAZ 2107 injector

.
The battery is low. Voltmeter does not show exercise
. The battery indicator goes off. No.

In the first case, the blades mounted on the rotor constantly put pressure on the brushes, as a result they wear out, and then electricity stops flowing to the field winding, which means that the generator itself will not be able to turn on.

where is the charge relay located

For those who have not found it, we inform you that this device is installed directly on the generator housing,2107

. Directly on its back cover there is a round object mounted on a small plastic platform on top. In most cases it is black. There is a yellow post attached to it. In fact, it is this inconspicuous detail that is the desired relay. Do not remove it immediately, as it is secured to the surface of the generator with two screws.

To prevent removal of the entire power generation device, follow these steps when replacing an element in the following order:

disconnect the negative connector from the battery, otherwise there is a risk of short circuit;
pull out the yellow wire mentioned above from the relay;
Remove both bolts while holding it to the generator cover.

The device can be easily removed. Next we check. First of all, you need to make sure that the brushes on it remain of sufficient length, otherwise the relay must be replaced.

Health check

There are several verification options. And if this is a newly purchased relay, and an old one in any case, checking it is very simple:

the multimeter connects directly to the brushes;
then a constant voltage is applied to the relay, it will be placed in the battery field (ground minus, contact B plus);
if the charger is working, the meter will show how many volts it produces (up to 14.8);
If a multimeter is not available, it should be replaced with a standard 12 V lamp, the power of which, however, should not exceed 3 W.

How to determine the malfunction?

If, while warming up the car, you begin to notice strange actions on the dashboard (the voltmeter readings change greatly with minimal engine load or the battery charging light lights up), then this can only mean one thing - the alternator brushes are worn out and need to be replaced.

How to determine a generator malfunction

In some cases, a good warm-up of the engine allows you to “extinguish” the indicator. At the same time, the car drives on the autobahn quite calmly and normally, without any signs of malfunction. But you shouldn’t be such an optimist, because your car may break down at the most inopportune time. Don't forget to check the condition of the alternator winding and belt, although the absence of sparks and smoke suggests that the brushes are the cause of the breakdown.

Dismantling and checking voltage regulators on a VAZ 2107

First, let's decide on the tools and devices that will be needed for the job. Here they are:

household multimeter;
open-end wrench 10;
flat screwdriver;
Phillips screwdriver.

Sequence of work

If the driver suspects that the voltage regulator is broken, then the first thing he should do is check the voltage supplied by the battery.

If it drops below 13 volts (or, conversely, rises above 14 volts), then this indicates a breakdown of the regulator.

Video: checking the voltage regulator on a VAZ 2107

Like any other device, the voltage regulator can break down suddenly. And it’s especially difficult for the driver if the breakdown occurs far from home. There is nothing surprising here: drivers who constantly carry spare regulators with them need to look further. But even in such a difficult situation, there is still a way to get home (or to the nearest service center). But you won’t be able to get there quickly, because every hour you’ll have to crawl under the hood and remove the terminals from the voltage regulator. And then, using a suitable piece of insulated wire, connect the positive terminal of the battery and contact “Ш” on the regulator. This is done so that the charging current does not exceed 25 amperes. After this, the regulator terminals return to their place, and the car starts. You can drive it for about 30 minutes, and you should turn on the maximum number of energy consumers - from the headlights to the radio. And after 30 minutes you should stop again and do the entire above procedure again, since without this the battery will simply recharge and boil.

So, even a novice car enthusiast can check the voltage regulator on a VAZ 2107. All that is required is the ability to use a multimeter and a screwdriver. Following the recommendations listed above will allow the car owner to save about 500 rubles. This is how much it costs at a car service center to check and replace the voltage regulator.

In the article we will talk about what a charging relay on a VAZ-2107 is and what functions it performs. And most importantly, we will understand the operating principle of various types of devices. This element is inconspicuous, very reliable and inexpensive, but it can fail at the most unexpected moment. As a rule, drivers pay attention to it after the battery loses charge. This leads to a lot of other problems - the engine does not start, electrical equipment does not work correctly. To prevent this from happening, you need to check the functionality of the charging relay.

Replacing brushes on a VAZ-2107 and other similar models - is there a difference?

To begin with, it is worth clarifying that generator brushes are the parts that require replacement most often. For this reason, developers create special generator designs so that the driver can make the replacement without any problems. The process of their wear is quite long, it depends on the life of the car, as well as on the intensity of the load. When purchasing a used car with a fairly high mileage, you should not wait until the parts wear out and stop functioning fully. It's better to replace it right away. Fortunately, the low cost allows this.

Replacing old parts

People who are far from the structural features of their vehicle may well think that the production of different models at the same plant makes the replacement process the same (we are talking about popular domestic models). To be honest, this guess is correct. One can say even more: almost all models with an internal combustion engine have the same replacement process.

Tip: You can install brushes from VAZ on some Audi or BMW models, and they will function perfectly. The appearance, however, is slightly different with a rougher edging, but this does not affect the operation.

Useful tips

If, before replacing the brushes, you begin to notice noise when the generator is running, then this malfunction may indicate wear on the generator bearings.

Increased play may indicate premature bearing wear. In this case, you need to replace it.

Important! Premature bearing wear can occur for many reasons, not just due to insufficient lubrication.

Often, an overtightened alternator belt leads to bearing failure.

To prevent breakdowns of vehicle systems, it is advisable to regularly check components according to the manufacturer’s recommendations. Try to create a habit of periodically inspecting the engine compartment for noise. This will avoid serious damage and solve existing problems with minimal financial costs. It’s better to do everything right than to do it “as always.” Good luck on your journey!
